FBT ProMaxX 114A 14″ + 1″ Active Loudspeaker with LCD display and DSP – 900W RMS

£795.64 "Including VAT"

Categories: ,

Description

ProMaxX 114a is an active speaker equipped with a 14′ custom FBT speakers complete with a 1.4″ 2.5″VC B&CÂ’s renowned compression driver Biamped: 700W RMS LF, 200W RMS HF.90°H x 60°V constant directivity horn 135.5dB SPL. Specially developed polypropylene cabinet and stylish full grille design.

Equipped with custom FBT speakers complete with B&C’s renowned compression driver technology,ProMaxX combines true made-in-Italy quality and style. At its heart is a purpose-built FBT amplifier module with a switch-mode power supply. For the low frequency section, 700W RMS is driven via a highly efficient Class-D topology, boasting extremely low THD. For HF, meanwhile, 200W RMS is delivered by a Class-H / AB design chosen to ensure the highest definition of audio performance at high frequencies.

Also onboard is a powerful digital signal processing (DSP) platform made available to users of all levels thanks to an intuitive graphical user interface. Located on the rear of the enclosure, the menu-driven system is navigated via a single rotary control with push-to-select functionality.

Users can choose between 6 equalizer presets, each carefully designed by FBT engineers to ensure that every application is catered for (see below). Additionally, 2 preset slots are available for users to form their own designs, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, low, mid and high tone settings and an optional delay of between 0 and 10 metres. Finally, users can exclusively choose between two limiter modes, MAX-SPL or MAX-QUALITY, to best suit their performance,

The ProMaxX feature-set is matched by the enclosure’s versatility, with options for pole-mounting, wall-hanging, suspension or even deployment in an array. The result is the most accessible PROMAXX yet.

Presets for every occasion
ProMaxX offers 6 presets to cater for a broad variety of uses, each crafted by FBT engineers. Employing powerful DSP, the presets ensure reliability while eliminating distortion.
  • ORIGINAL / LIVE The renowned, smooth FBT sound
  • VOCAL A special EQ setting to maximise speech intelligibility
  • DJ Designed to keep the energy high and your audience dancing
  • TOURING The reliability and the roar of the industry’s most popular touring systems
  • LOUDNESS The ultimate preset for listening at a medium or low volume
  • WARM A special setting to emphasise full-bodied, low-mid frequencies.
KEY FEATURES
  • 2-way, bi-amplified, bass reflex design cabinet
  • Biamped: 700W RMS LF, 200W RMS HF, power amplifiers in Class D for LF and in Class H/AB for HF with switch mode power supplies
  • Digital signal processor with graphic display

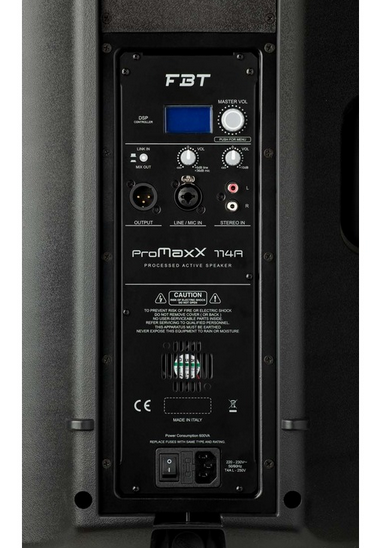

  • Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
  • 2 x M10 suspension points, 35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
  • 90°H x 60°V constant directivity horn
  • Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
  • 3550mm (14″) LF woofer with 64mm (2.5″) voice coil, custom made for FBT
  • 35mm (1.4″) throat exit B&C HF magnet compression driver with 34mm (1.4”) voice coil
  • Frequency response from 45Hz to 20KHz
  • Sturdy, gas-injected polypropylene molded enclosures, engineered to contain undesired resonance
  • Extremely light only 17.4kg
  • Compact Dimensions: ProMaxX 114A uses the same size gas-injected polypropylene molded enclosure as the ProMaxX 112A, but features our  14” LF Woofer for lower frequency SPL



Additional information

Weight 17.5 kg
Dimensions 402 × 345 × 644 cm
